Unifi Teleport vpn users unable to access subnets on site to site VPN between UDM pro and Fortigate

We have a UDM Pro max with a site to site vpn connection with a Fortigate (Datacenter). Everything works fine between the UDM and the Fortigate; meaning, anyone on the UDM networks can access the subnets configured on the the Fortigate. The issue we are having is Teleport users who access the UDM are unable to traverse the internal networks of the UDM even though we have setup static route on the UDM.

As a teleport user, you recieve an IP of 192.168.2.x; which is an invisible network that is automatically assigned to teleport users. I can ping any of the vlans on the UDM pro; but I cant ping the teleport gateway 192.168.2.1; nor can you ping another teleport vpn user on the same subnet. a tracerout on the machine running teleport will show an attemp to go out my WAN connection
![Screenshot at Jun 02 12-51-32|690x372]
any suggestions appreciated.

Sounds like you need some routes and possibly firewall rules built.

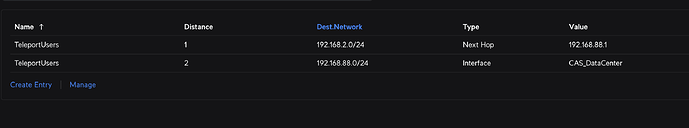

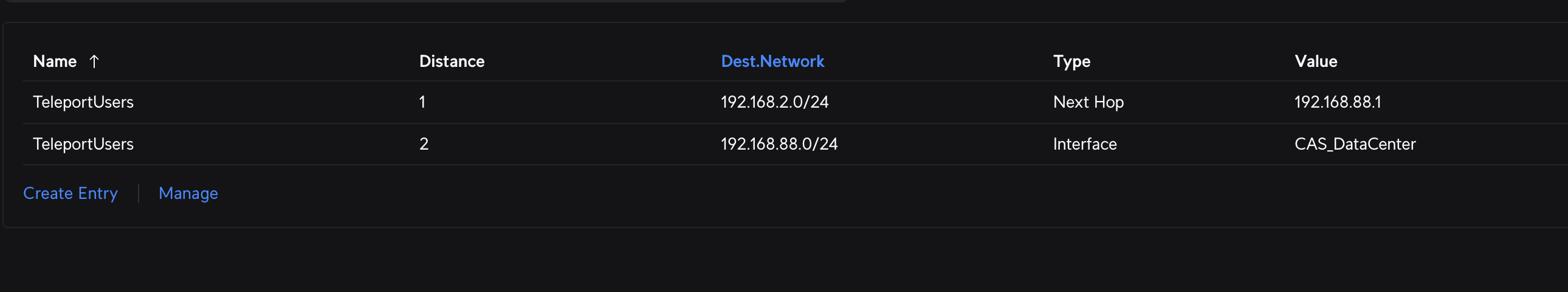

I do have two static routes, but i am not sure this is correct. screenshot attached.
